VR Headset Component Manufacturing

VR headsets live or die on optics, weight and cosmetics — and all three are decided by injection molding. The front cover carries the lens mountings and the camera windows, the remote housings carry the thumb-stick openings and button wells, and every visible surface has to hit a cosmetic grade straight out of the tool because secondary painting adds cost, weight and failure modes. Consumer electronics timelines make it worse: hardware teams often need validated parts in 4-6 weeks, not the 12-16 weeks a traditional tooling program takes.

MOLDITQUICK manufactures VR front covers, remote housings and accessory components for headset brands and their EMS partners. The covers are molded in PC or PC/ABS on our 100T Sodick machines with high-polish cavities (SPI A-1), and the remotes run on multi-cavity tools with family layouts for the various button caps. Because we keep mold making in-house, tool trials and cosmetic iterations happen in days, not weeks.

Cosmetic Grades Without Secondary Finishing

The standard we chase is "cosmetic grade A" — no visible gate marks, no flow lines, no sink marks on any surface the user sees. That starts in the cavity finish: diamond-polished steel at 0.25 µm Ra for gloss surfaces, or a laser-textured cavity for matte. It continues in the process: a slow first stage so the melt front advances without hesitation lines, a controlled packing phase to prevent sink, and mold-temperature control to keep the surface replication consistent shot to shot. On PC/ABS covers we run the mold at 80-100°C, which is why the machine must have a proper thermal controller — a 40T press without one will give you 30% scrap on a glossy cover.

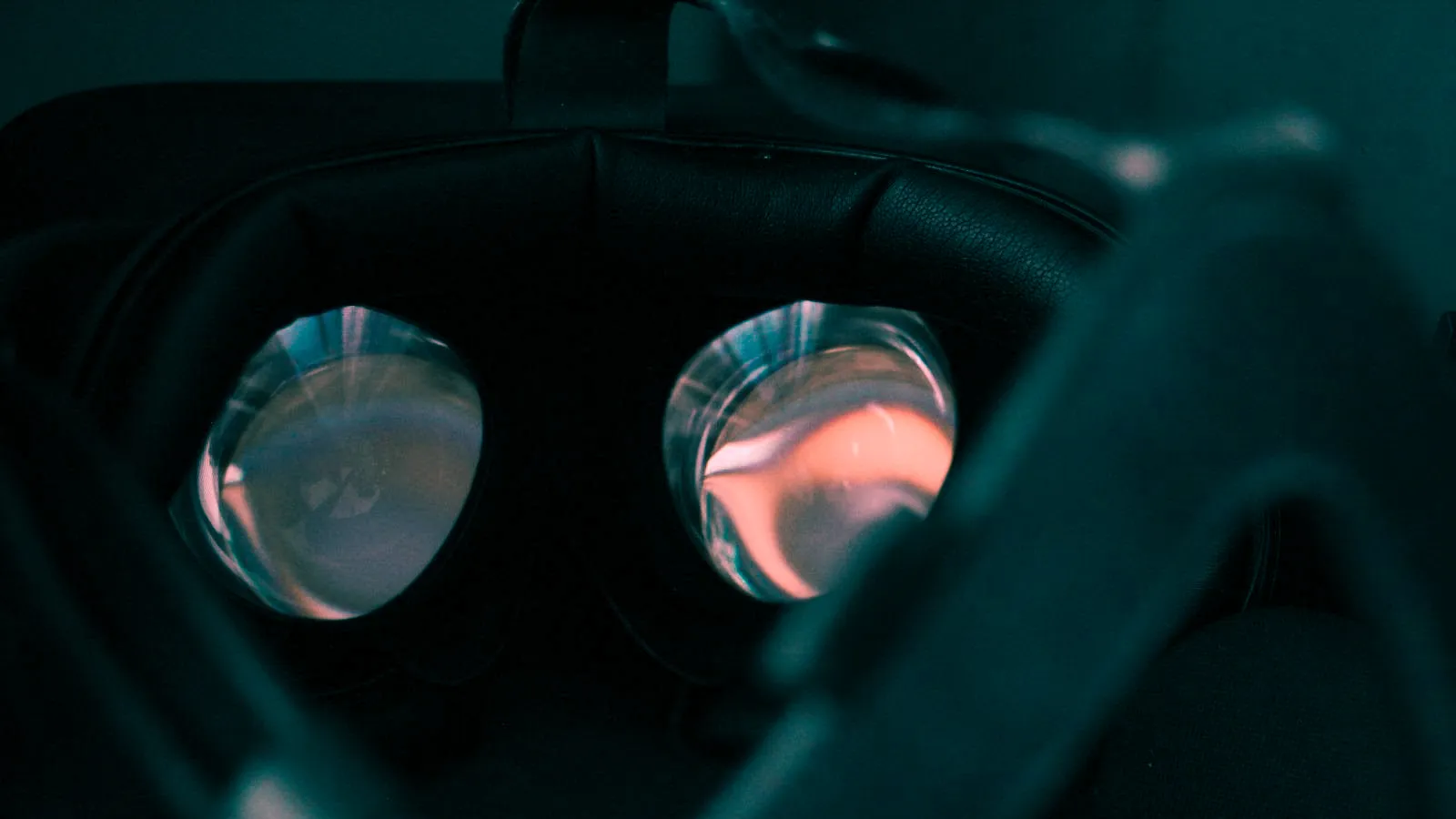

Transparent window parts are a separate discipline. The lens windows on the front cover need optical clarity, so we mold them in clear PC with the gate hidden behind the bezel, and we keep the moisture content below 0.02% by pre-drying — any moisture in PC produces silver streaks that fail the light-transmission check. FirstMold's public VR case study (firstmold.com case study) covers the same class of program: cosmetic covers and remotes with tight tolerances and fast tooling. Our equivalent programs ship at 7-12 days for low volume and 25-30 days for production.

Assembly-Ready Tolerances and Fast Iteration

The remote housing is the harder part of the VR system: thin walls (1.2-1.8 mm), deep button wells, a thumb-stick cutout that must clear a ±0.1 mm opening, and a battery door that has to feel right. We hold the critical datum-to-cutout dimensions to ±0.05 mm and check every production lot with a CMM or comparator. The first-article inspection is completed within 48 hours of first shots, so the hardware team sees real parts, not renderings.

Because we control the tool steel, iteration is fast: a gate move or a wall-thickness tweak is a 3-5 day change, not a two-week re-quote. And when the program moves from 50 prototype units to 50,000 production units, the same tool scales — we do not re-tool between phases, which is the biggest hidden cost in consumer electronics launches. See our VR headset front cover case study for a full program example.

Ready to launch a VR or wearables program? Send us the design files and target dates. We will tell you honestly whether the schedule is achievable and quote tooling plus parts in one response. Contact us to start the DFM review.

The headset supply chain adds one more requirement: consistency across batches. A cover produced in March and a cover produced in September must match in color, gloss and dimension, or the assembly line stops. We control the material lot sourcing, the process parameters and the inspection criteria across production runs, and we keep color and gloss references from the approved sample. For multi-part programs — cover, remote, accessories — the same discipline applies to every component, which is why the whole program benefits from running under one quality system.
